Product Detail

Customer Benefits
  •          Easy operating thanks to the user friendly HMIEasy operating thanks to the user friendly HMI with intuitive programming

  •          Efficient 2D graphical profile drawing (Touch Profile)

  •          Fast and precise 2D program solution with automatic bending sequence calculation with intuitive programming

  •          Efficient 2D graphical profile drawing (Touch Profile)

  •          Fast and precise 2D program solution with automatic bending sequence calculation
Download PDF datasheet / Brochure
Brochure Datasheet

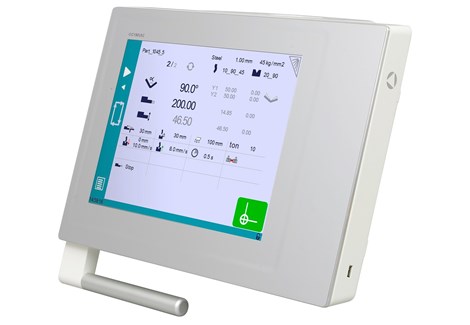

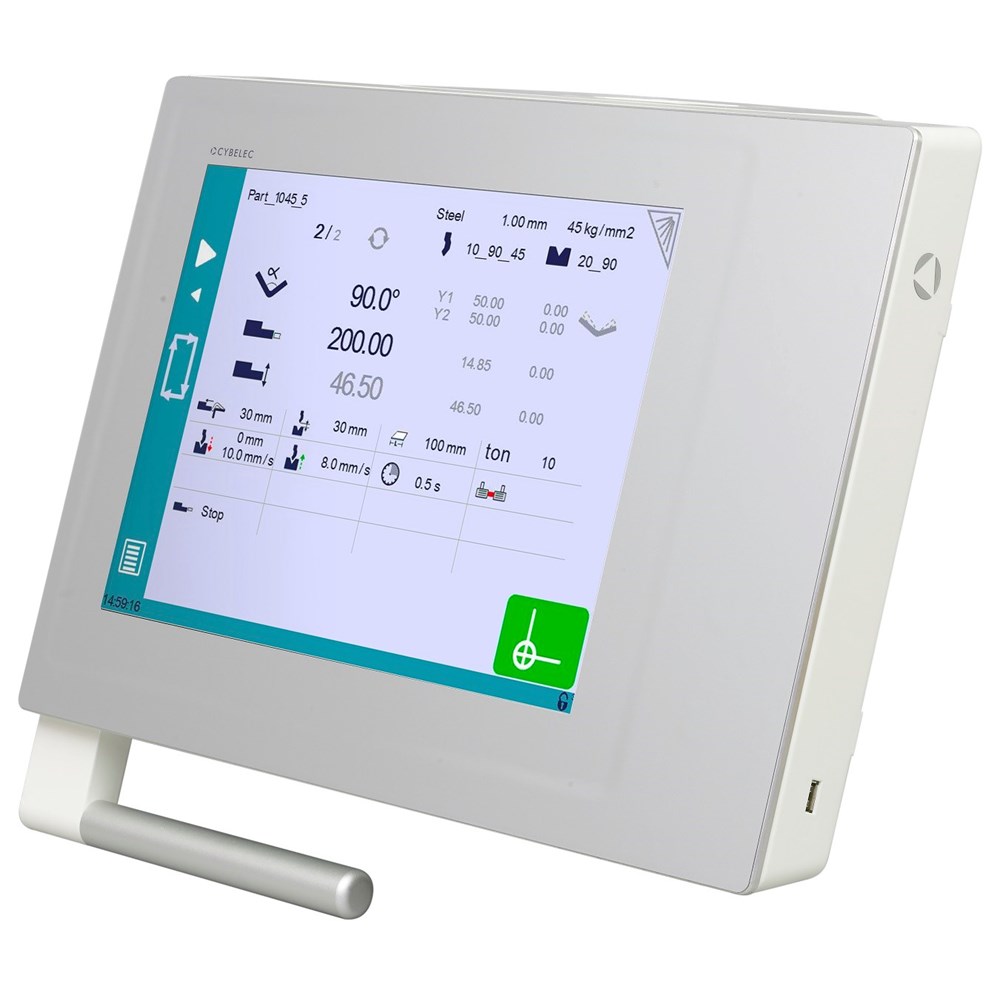

Cybtouch 15 PS

The CybTouch 15 PS is a 2D numerical control specifically dedicated for entry to mid-range CNC press-brakes.
It comes in a compact housing, similarly to the well-known CybTouch range in the field, but offering a bigger touchscreen and a new horizontal design.
As the entire CybTouch range, the CybTouch 15 PS features an intuitive touch screen user interface, offering a high integration of functionalities.
Thanks to its large keys, online help, user-friendly HMI and many automatic functions that constantly guide the operator, the CybTouch 15 PS is simply powerful and userfriendly.
The CybTouch 15 PS is integrated into a sleek and modern housing or can optionally also be delivered as a robust panel.





Main features for the user

  • 15” modern streamlined glass surface touch screen that can be used with gloves.
  • User friendly HMI thanks to intuitive programming and easy to setup with dedicated wizards (autotuning).

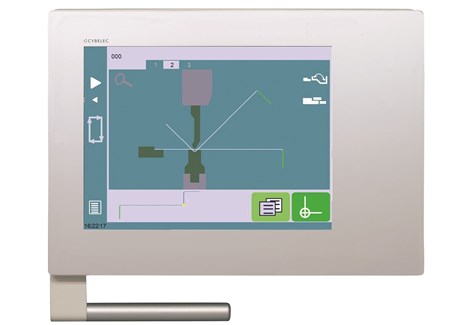

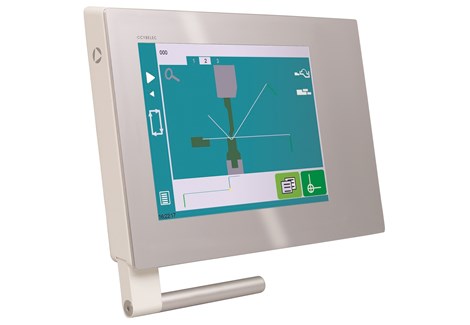

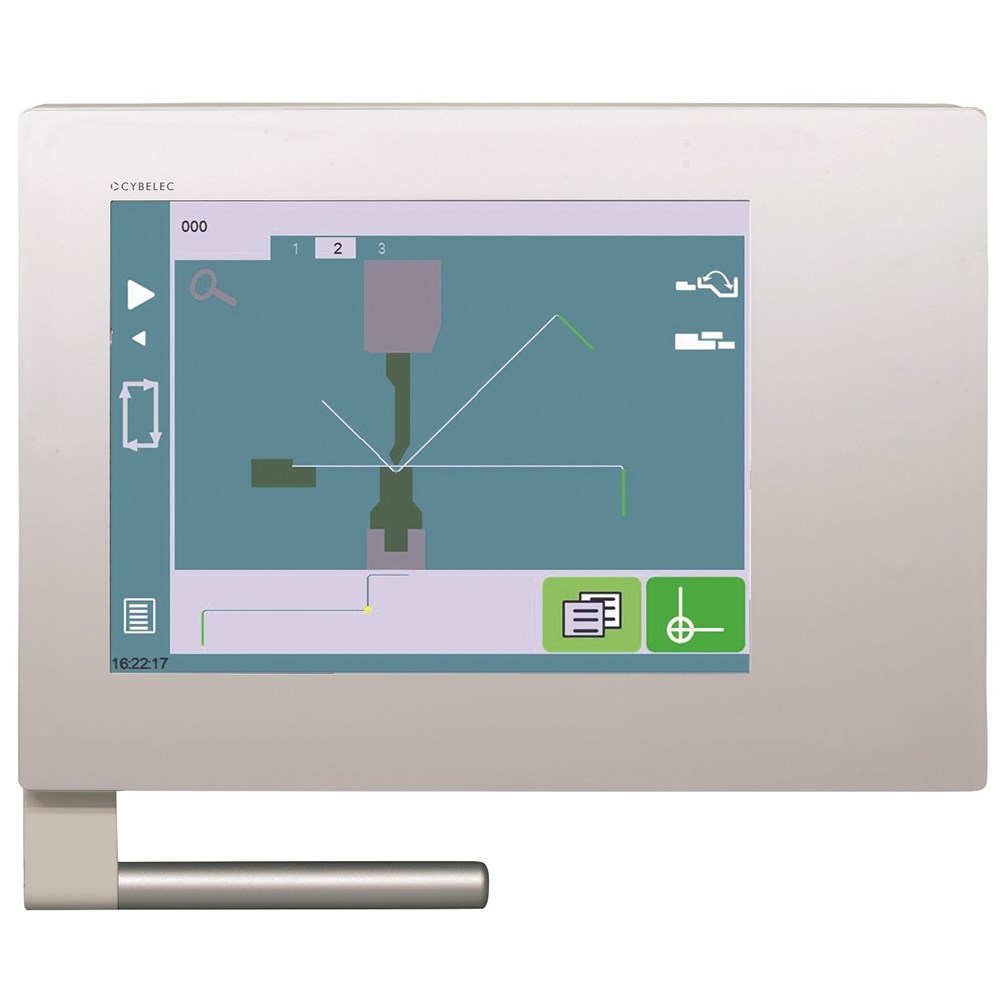

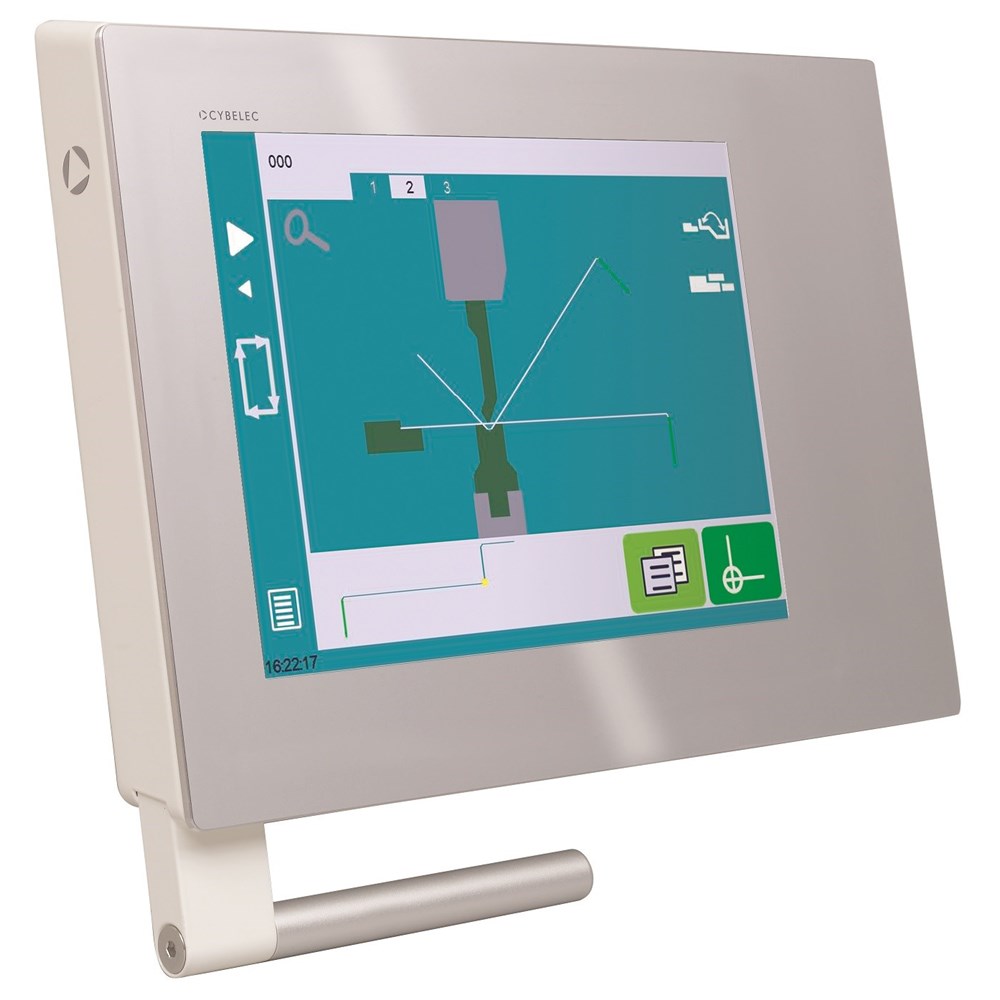

  • 2D graphical profile drawing (Touch Profile) and precise 2D program creation.
  • Automatic bending sequence calculation.
  • Easy single bends thanks to the EasyBend page.
  • Wide storage capacity.
  • Internal backup and restore functions.
  • Wireless communication for extended diagnostics and updates (with laptop).

Main features for the OEM

  • 4 or 6 axes control in a compact housing.
  • Management of AC/DC drives and motors, frequency converters for AC asynchronous motors, twospeeds mode, and more.
  • Pressure, crowning and pump speed management.
  • Advanced algorithms for closed and open loop proportional valves control.

Ordering information:

S-CBT-154PSA20/BW Touchscreen 15”, CNC 4 axes, 2D graphical, housing version.
S-CBT-154PSA20/P Touchscreen 15”, CNC 4 axes, 2D graphical, panel version.

Options:

  • Z1, Z2 axes (requires CybMVA module for Y1, Y2)
  • Tandem management.
  • VisiTouch 2D or VisiTouch MX offline software.




CybTouchTools

All CybTouch come with CybTouchTools, which allows to wirelessly transferring data between a PC and CybTouch (requires optional RFLink USB key). It is used to backup/restore machine parameters, tools and parts, as well as updating the firmware.



Bundled Offline Software

CybTouch 15 PS comes with PC-ModEva offline software.
This program allows you to prepare your programs, calculate offers and check the feasibility of parts in your office on a PC. No time is wasted on the machine.

  • PC-ModEva allows parts from DNC and ModEva series to be transferred to CybTouch, and vice versa.
